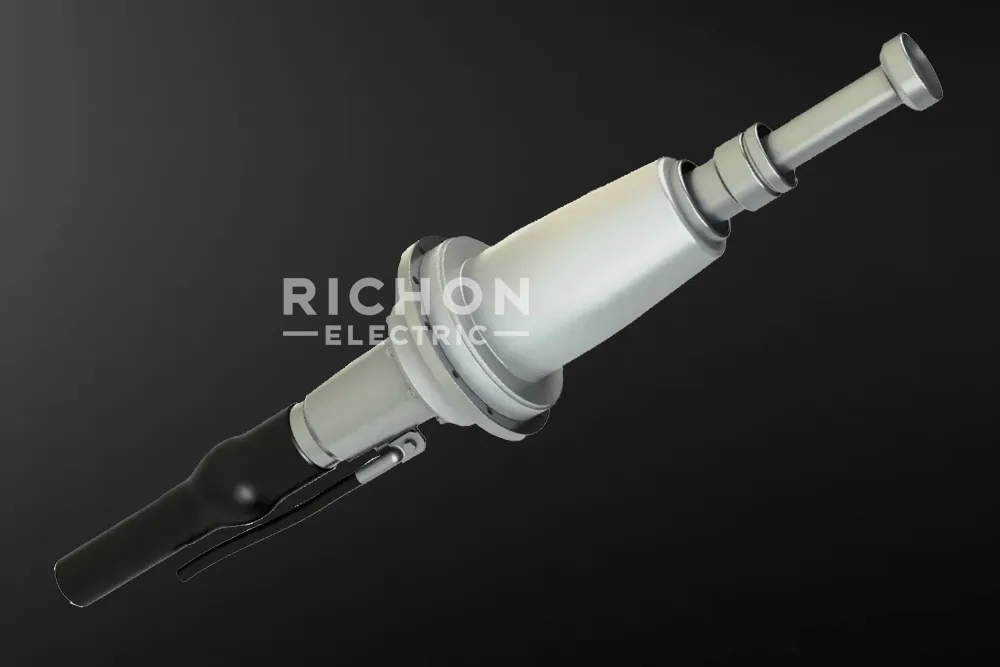

Description
Key Features
- Plug‑in connection design simplifies installation and maintenance
- Compact structure with reduced installation space requirements
- Lightweight design suitable for substation and GIS applications
- Injection‑molded EPDM stress cone ensuring stable electrical stress control
- Spring‑cone structure securing the stress cone within the epoxy insulator
- Optimized stress cone surface design preventing ageing relaxation issues
- Dry insulation structure eliminating risks of oil leakage
- Compatible with both transformer and GIS cable connections
- Extension rod option allowing compatibility with long‑type GIS interfaces
- Designed and tested according to international standards
Applications
- Connection of high‑voltage power cables to GIS switchgear
- Transformer cable termination systems
- Substation cable connections
- High voltage transmission and distribution networks
- Industrial power supply systems requiring GIS cable interfaces
Voltage and Cable Range
| Rated Voltage | Applicable Cable Cross Section |
| 72.5 kV | 120 – 1600 mm² |
| 126 kV | 240 – 1600 mm² |
| 145 kV | 240 – 1600 mm² |
| 252 kV | 400 – 2500 mm² |
Structural Design

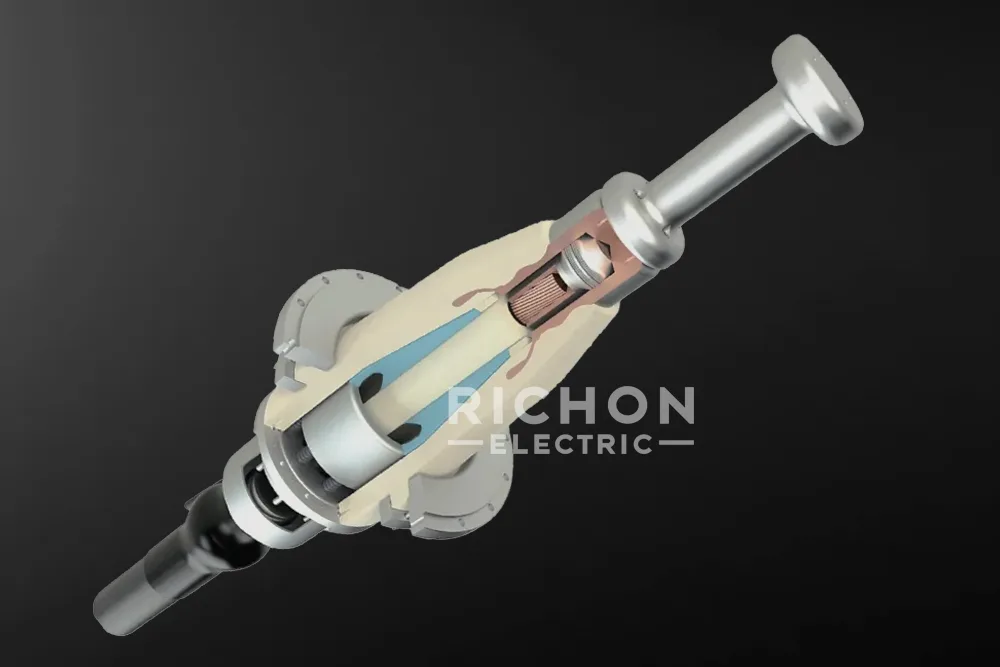

The stress cone is manufactured from imported EPDM rubber using precision injection molding technology. It is secured within the epoxy insulator using a spring cone structure, ensuring reliable mechanical positioning and long‑term electrical stability.
Special surface design of the stress cone prevents electrical degradation caused by aging relaxation or poor contact with the cable outer semi‑conductive layer. The dry insulated structure eliminates the risk of oil leakage and ensures stable performance throughout the service life.
Installation Conditions
Suitable for indoor and outdoor installation environments with operating temperatures between –50°C and +50°C and installation altitudes up to 4000 meters.
Standards and Testing
The product design and testing comply with international and national standards including IEC 60840, IEC 62067, and GB/T 18890.
Ordering Information
Please contact our sales team before placing an order to confirm the appropriate voltage level, cable cross‑section, and equipment interface configuration. Customized configurations are available according to project requirements.
