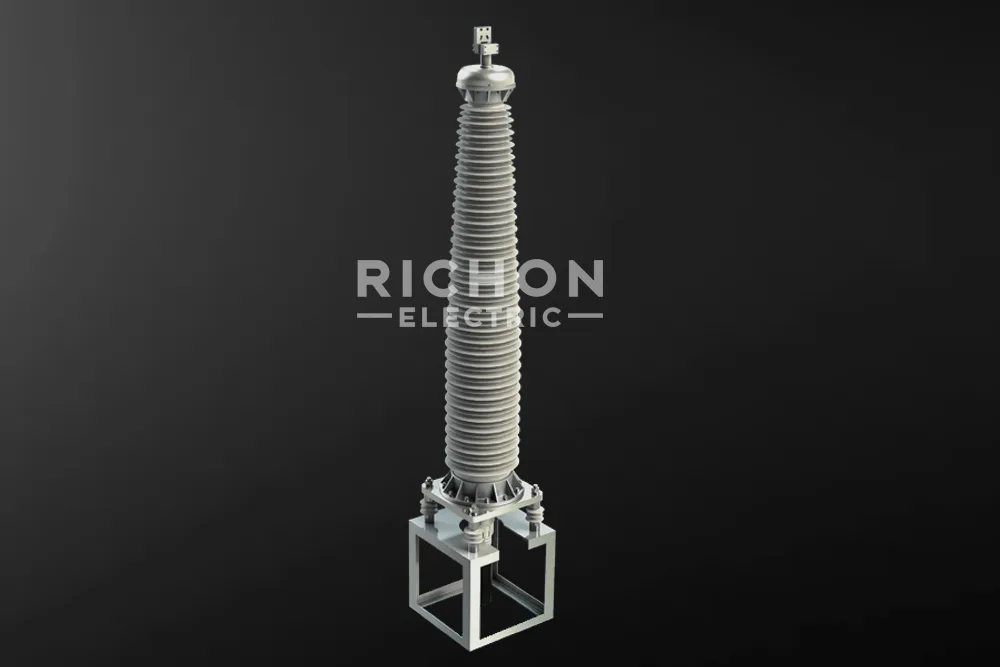

Description
Key Features
- Silicone rubber composite insulation with excellent anti‑pollution flashover performance
- High resistance to UV radiation, ageing, and environmental degradation
- Lightweight design approximately half the weight of equivalent porcelain terminations
- Injection‑molded EPDM stress cone for stable electrical stress control
- Spring cone carrier structure ensuring reliable mechanical fixation
- Stress cone cover design preventing insulation compound contamination
- Multi‑layer sealing structure preventing water or oil leakage
- Rain sheds optimized to reduce contamination flashover risks
- Designed and type tested according to IEC and GB standards
Applications
- Outdoor termination of high voltage power cables
- Substation cable termination systems
- Transmission and distribution networks
- High voltage cable systems operating up to 252 kV
- Industrial power supply and utility infrastructure
Voltage and Cable Range
| Maximum System Voltage | Applicable Cable Cross Section |
| 72.5 kV | 150 – 1600 mm² |
| 126 kV | 240 – 1600 mm² |
| 145 kV | 240 – 1600 mm² |
| 252 kV | 400 – 2500 mm² |
Structural Design

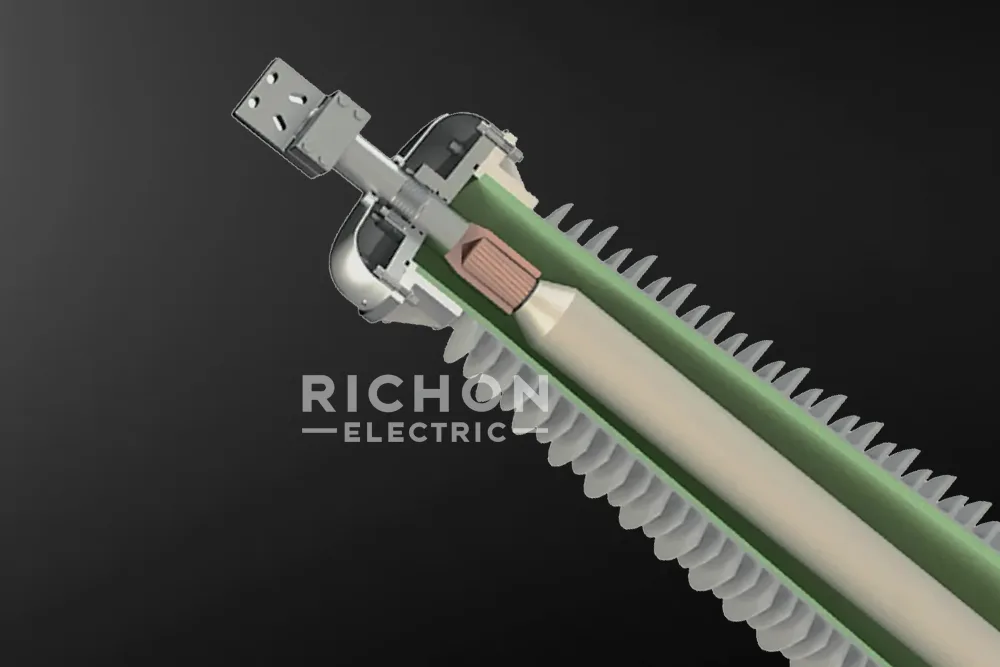

The stress cone is injection‑molded from high‑quality EPDM rubber and installed using a spring cone carrier structure. The stress cone cover isolates the stress control layer from insulating compounds, preventing poor electrical contact with the cable outer semi‑conductive layer and avoiding performance degradation due to ageing.
A multi‑layer sealing system ensures excellent protection against moisture ingress and oil leakage during long‑term operation. Optimized rain shed geometry improves pollution flashover resistance in heavily contaminated outdoor environments.
Standards and Testing
The product design and performance are type tested according to relevant international and national standards including IEC 60840, IEC 62067, GB/T 11017, and GB/T 18890.
Installation Conditions
Suitable for indoor and outdoor installation environments with operating temperatures between –50°C and +50°C and installation altitudes up to 4000 meters.
Ordering Information
Please contact our sales team before placing an order to confirm the appropriate termination type, voltage level, and cable cross‑section. Customized configurations are available according to project requirements.
