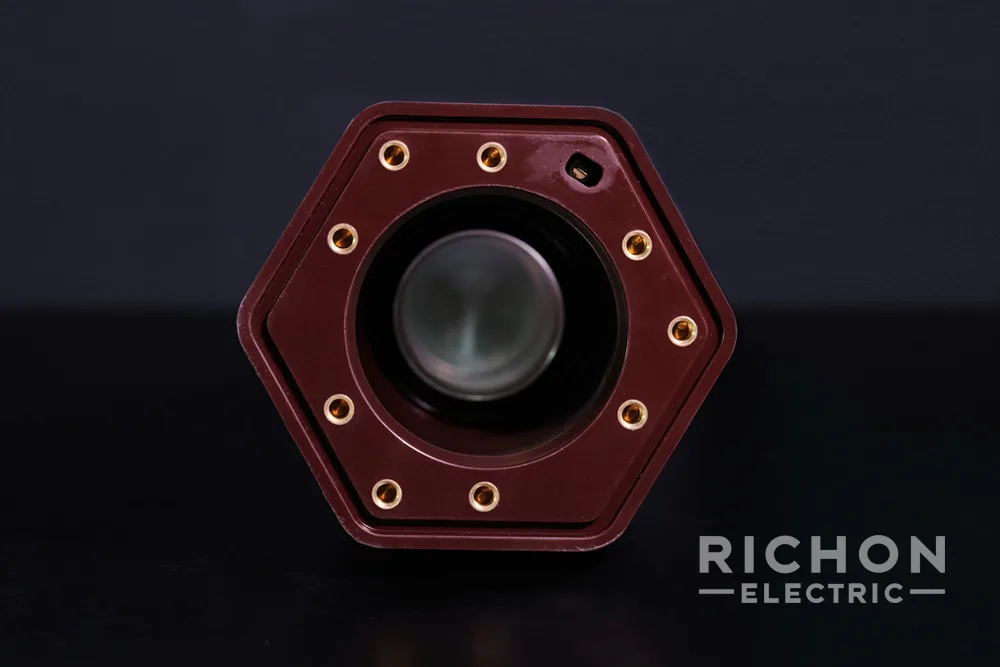

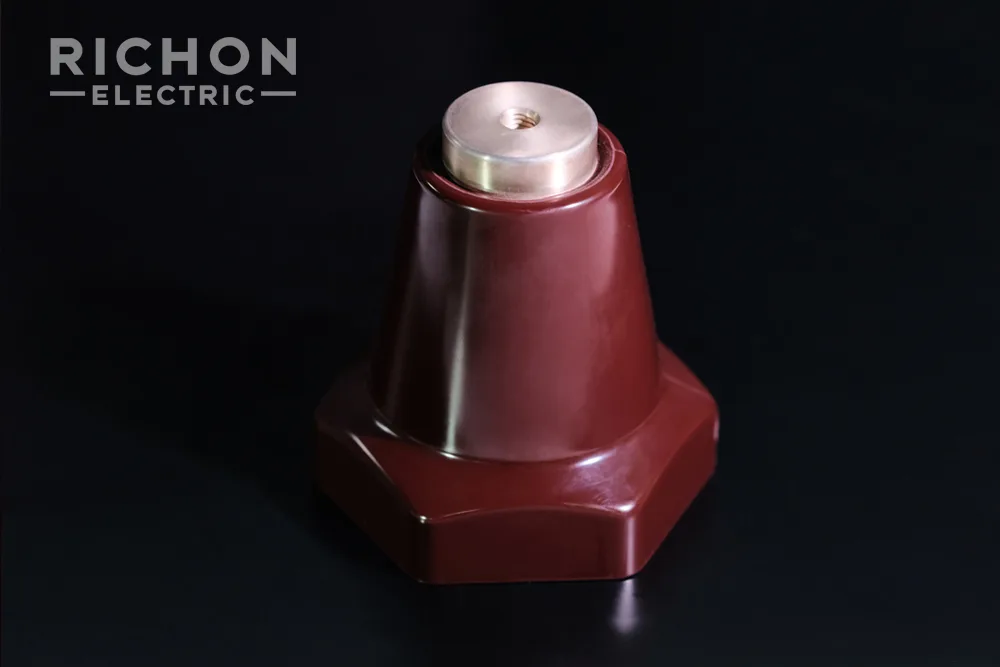

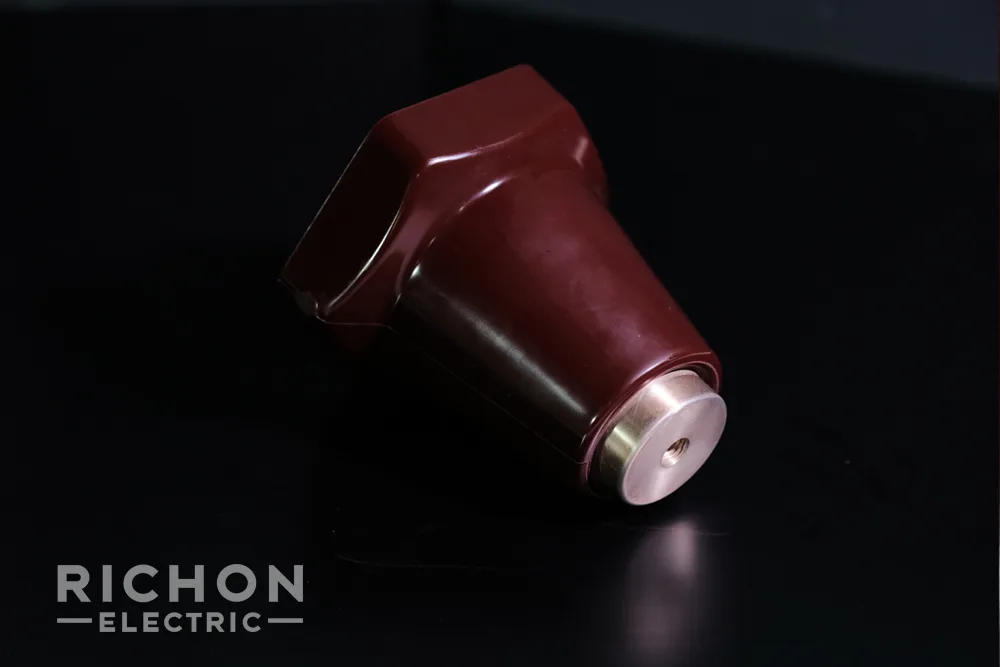

Description
Key Features
Conforms to EN 50180 and EN 50181 international standards
Designed for connection to high‑voltage conductors of C‑GIS cabinets or transformers
Compact fully insulated structure requiring no maintenance
Reliable spring contact connection ensuring stable electrical contact
Inclined bolt design allowing easier installation without special tools
Integrated stress cone ensuring safe electrical stress control
Portable and compact design suitable for modern switchgear installations
100% routine testing ensuring electrical reliability and safety
Typical Applications
GIS plug‑in cable terminations for XLPE insulated single‑core or three‑core cables
Ring main unit (RMU) switchgear systems
Circuit breaker switchgear installations
High‑voltage motors and transformer connections
Capacitors, transducers, and sealing boxes
Utility substations and industrial power distribution systems
Standards
EN 50180 – Bushings above 1 kV up to 52 kV
EN 50181 – Plug‑in type bushings above 1 kV up to 52 kV
DIN 47637 – Inner cone interface standard
GB/T 12706.4 – Power cables with extruded insulation
IEC 60502.4 – Power cable accessories
Outline Dimensions
Part No. #1 — L1: 140 mm — L2: 137 mm — Conductor Diameter: 36 mm
Part No. #2 — L1: 140 mm — L2: 137 mm — Conductor Diameter: 39 mm
Part No. #3 — L1: 217 mm — L2: 165 mm — Conductor Diameter: 55 mm
Installation Parameters
Bushing Installation Position Φ1 — #1: 102 mm — #2: 102 mm — #3: 113 mm
Installation Hole Quantity — #1: 3 — #2: 3 — #3: 6
Termination Installation Position Φ2 — #1: 95 mm — #2: 102 mm — #3: 130 mm
Termination Installation Holes — #1: 3 — #2: 3 — #3: 3
Live Part Verification Position Φ3 — #1: 95 mm — #2: 95 mm — #3: 124 mm
Verification Hole Quantity — #1: 3 — #2: 3 — #3: 3
Electrical Performance
Rated Current — #1: 630 A — #2: 800 A — #3: 1250 A
Maximum System Voltage (Um) — #1: 36 kV — #2: 42 kV — #3: 42 kV
AC Withstand Voltage (50Hz, 5 min) — #1: 70 kV — #2: 117 kV — #3: 117 kV
Partial Discharge (1.73U0) — ≤5 pC
Lightning Impulse Withstand Voltage (1.2/50 μs) — #1: 170 kV — #2: 200 kV — #3: 200 kV
Maximum Short‑Time Current Withstand (1 s) — #1: 31.5 kA — #2: 40 kA — #3: 50 kA
Rated Impulse Current — #1: 125 kA — #2: 150 kA — #3: 150 kA
