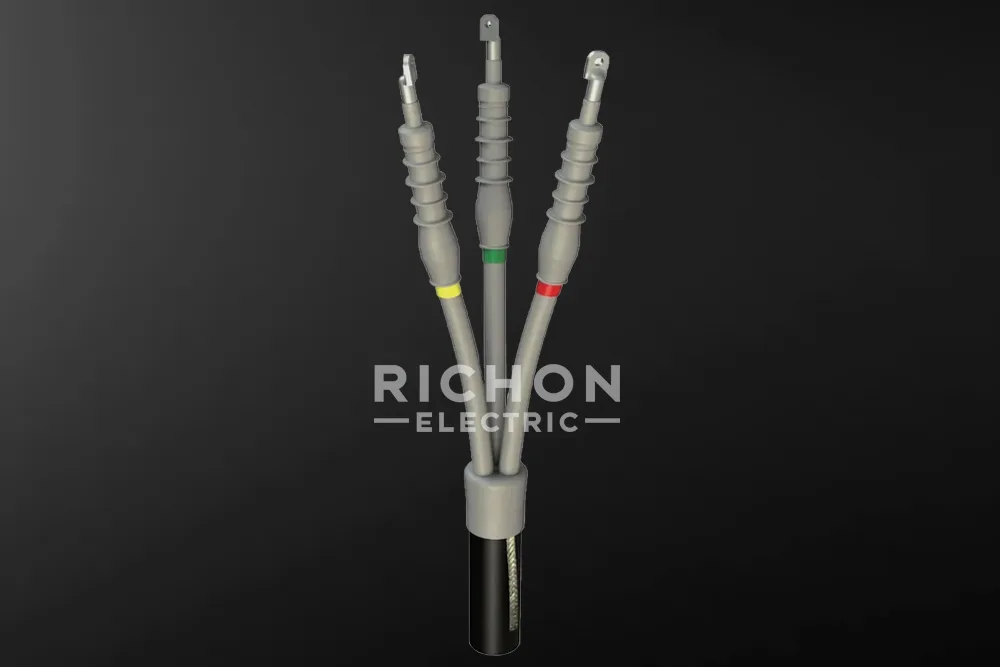

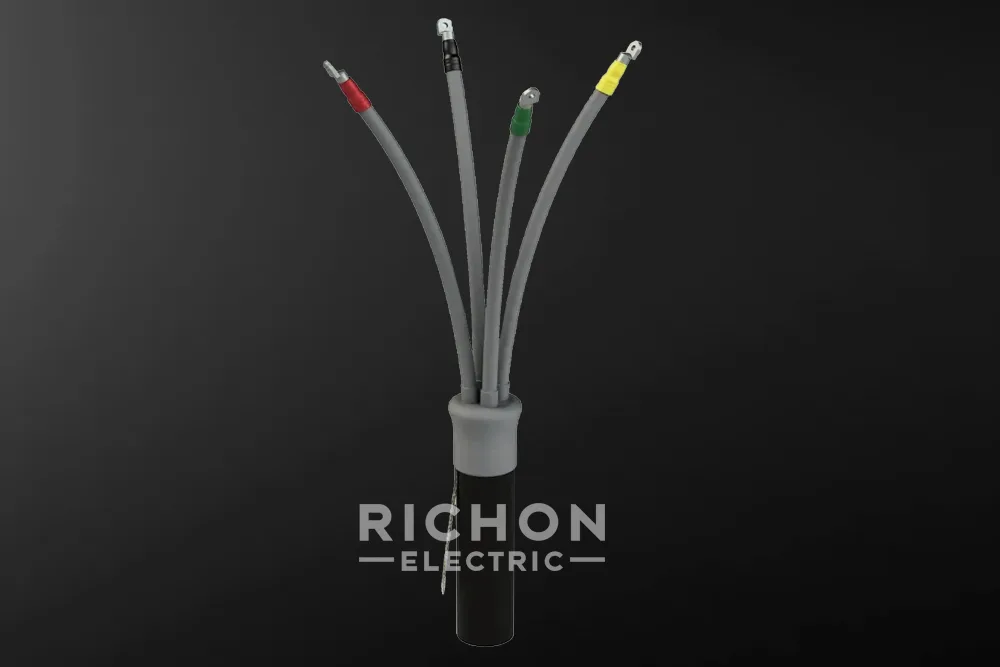

Description
Key Features:
No Heat Required:

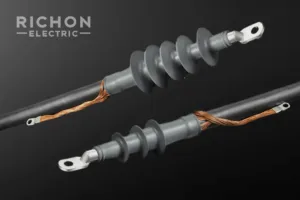

Unlike traditional heat shrink terminations, Richon Cold Shrink Terminations require no heating. The inner support holds the termination in place during handling. Upon removal, the termination automatically shrinks to form a tight, secure seal around the cable, reducing installation time and eliminating the need for extra tools or heat.
High-Quality Liquid Silicone Rubber (LSR):
Constructed from premium LSR, these terminations provide outstanding elasticity, insulation, and protection. The material ensures durability and reliable performance, even under extreme environmental conditions.
Superior Insulation & Sealing:
Once installed, cold shrink terminations deliver excellent electrical insulation and moisture sealing, preventing breakdowns and safeguarding the cable’s integrity. The design helps distribute electrical stresses evenly, eliminating the risk of stress concentrations that could lead to failures.
No Copper Wires or Heating Tools:
Installation is simplified as these terminations don’t require copper wires or heating tools. Using constant-force springs, the termination is securely installed, minimizing installation complexity and labor costs.
Environmental Resistance:
Richon Cold Shrink Terminations are built to withstand tough environmental factors like moisture, aging, UV exposure, and cold weather. Their robust construction makes them resistant to contamination, corrosion, and wear, perfect for challenging environments.
Versatile Applications:
These terminations are suitable for various environments including high-altitude, cold, humid, salt-rich coastal areas, and regions with heavy pollution. This makes them perfect for a broad range of industries and applications in both indoor and outdoor settings.
Outstanding Sealing & Insulation Performance:
The cold shrink technology guarantees a tight seal around cables, offering superior protection. The termination also helps distribute electrical stress evenly, reducing the likelihood of faults and ensuring long-term, reliable operation in power distribution systems.
Applications:
Medium-Voltage Cable Terminations:
Ideal for medium-voltage cable terminations, Richon Cold Shrink Terminations ensure reliable insulation and sealing, making them perfect for use in power distribution networks, substations, and industrial systems.
Ideal for Challenging Environments:
These terminations excel in high-altitude, cold, humid, and salt-mist environments. Their resistance to UV light, moisture, and extreme temperatures makes them ideal for outdoor and underground installations in rugged conditions.
Flexible Installation:
Cold shrink terminations are highly versatile, offering reliable performance in both indoor and outdoor applications. They are commonly used in telecommunications, power networks, and other infrastructure requiring durable cable terminations.
Safe for Electrical Infrastructure:
These terminations offer a secure seal around cables, reducing the risk of electrical failures and ensuring the safety and longevity of power distribution networks. The design distributes electrical stress evenly, helping to maintain the overall integrity of the system.
Why Choose Richon Cold Shrink Terminations?
Effortless Installation:
With no heating or specialized tools required, installation is fast and straightforward, cutting down on labor costs and complexity. The constant-force springs ensure a snug fit without the need for copper wiring.
Long-Term Durability:
Built from liquid silicone rubber, these terminations are durable, resistant to aging, moisture, UV light, and corrosion, and are designed to perform reliably in harsh conditions for years.
Superior Sealing & Insulation:
The cold shrink technology offers exceptional insulation and sealing, preventing electrical faults and moisture ingress. It also mitigates stress concentration, which is crucial for maintaining the performance of high-voltage systems.
Cost-Effective Solution:
With fast installation and no need for specialized tools, Richon Cold Shrink Terminations provide a cost-effective solution for medium-voltage cable terminations, reducing both material and labor costs.
Wide Environmental Compatibility:
These terminations are ideal for use in diverse conditions, making them perfect for industries such as power distribution, telecommunications, and utility sectors. They perform reliably even in extreme environmental conditions.
Product Specifications:
| Voltage classes | 6/10(12)kV | 8.7/15(17.5)kV | 12/20(24)kV | 18/30(36)kV | 26/35(40.5)kV | |||||
| Partial discharge test at | 10kV,<10pC | 15kV,<10pC | 20kV,<10pC | 30kV,<10pC | 45kV,<10pC | |||||
| ambient temperature | ||||||||||
| AC withstand | 27kV 5min | 39kV 5min | 54kV 5min | 81kV 5min | 117kV 5min | |||||
| voltage test | ||||||||||
| Impulse voltage withstand | ±75kV | ±95kV | ±125kV | ±170kV | ±200kV | |||||
| each | each | each | each | each | ||||||
| polarity | polarity | polarity | polarity | polarity | ||||||
| 10 times | 10 times | 10 times | 10 times | 10 times | ||||||
Ordering Information
Indoor Termination |
Outdoor Termination |
Cable Insulation |
Cable Conductor |
||||
OD(mm) |
Cross-section(mm²) |
||||||
6/10(12)kV |
|||||||
1×1 core |
|||||||
| 12-7095-1 | 12-7095-1 | 16.5mm-19.7mm | 70mm²-95mm² | ||||
| 12-1215-1 | 12-1215-1 | 19.7mm-23.5mm | 120mm²-150mm² | ||||
| 12-1830-1 | 12-1830-1 | 22.5mm-31.3mm | 185mm²-300mm² | ||||
| 12-4063-1 | 12-4063-1 | 28.9mm-38.0mm | 400mm²-630mm² | ||||
1×3 cores |
|||||||
| 12-7095 | 12-7095 | 16.5mm-19.7mm | 70mm²-95mm² | ||||
| 12-1215 | 12-1215 | 19.7mm-23.5mm | 120mm²-150mm² | ||||
| 12-1830 | 12-1830 | 22.5mm-31.3mm | 185mm²-300mm² | ||||
| 12-4063 | 12-4063 | 28.9mm-38.0mm | 400mm²-630mm² | ||||
8.7/15(17.5)kV |
|||||||
1×1 core |
|||||||
| 17.5-2550-1 | 17.5-2550-1 | 16.5mm-19.7mm | 25mm²-50mm² | ||||
| 17.5-7012-1 | 17.5-7012-1 | 19.7mm-23.5mm | 70mm²-120mm² | ||||
| 17.5-1530-1 | 17.5-1530-1 | 22.5mm-31.3mm | 150mm²-300mm² | ||||
| 17.5-4050-1 | 17.5-4050-1 | 28.9mm-38.0mm | 400mm²-500mm | ||||
| 17.5-630-1 | 17.5-630-1 | 38.0m m-44.1mm | 630mm² | ||||
1×3 cores |
|||||||
| 17.5-2550 | 17.5-2550 | 16.5mm-19.7mm | 25mm²-50mm² | ||||
| 17.5-7012 | 17.5-7012 | 19.7mm-23.5mm | 70mm²-120mm² | ||||
| 17.5-1530 | 17.5-1530 | 22.5mm-31.3mm | 150mm²-300mm² | ||||
| 17.5-4050 | 17.5-4050 | 28.9mm-38.0mm | 400mm²-500mm² | ||||
| 17.5-630 | 17.5-630 | 38.0mm-44.1mm | 630mm² | ||||
12/20(24)kV |
|||||||
1×1 core |
|||||||
| 24-3550-1 | 24-3550-1 | 19.7mm-23.5mm | 35mm²-50mm² | ||||
| 24-7015-1 | 24-7015-1 | 22.5mm-31.3mm | 70mm²-150mm² | ||||
| 24-1840-1 | 24-1840-1 | 28.9mm-38.0mm | 185mm²-400mm² | ||||
| 24-5063-1 | 24-5063-1 | 38.0mm-44.1mm | 500mm²-630mm² | ||||
1×3 cores |
|||||||
| 24-3550 | 24-3550 | 19.7mm-23.5mm | 35mm²-50mm² | ||||
| 24-7015 | 24-7015 | 22.5mm-31.3mm | 70mm²-150mm² | ||||
| 24-1840 | 24-1840 | 28.9mm-38.0mm | 185mm²-400mm² | ||||
| 24-5063 | 24-5063 | 38.0mm-44.1mm | 500mm²-630mm² | ||||
18/30(36)kV |
|||||||
1×1 core |
|||||||
| 36-5015-1 | 36-5015-1 | 25.9mm-33.9mm | 50mm²-150mm² | ||||
| 36-1830-1 | 36-1830-1 | 33.7mm-41.3mm | 185mm²-300mm² | ||||
| 36-4050-1 | 36-4050-1 | 41.3mm-47.0mm | 400mm²-500mm² | ||||
| 36-630-1 | 36-630-1 | 47.0mm-53.5mm | 630mm² | ||||
1×3 cores |
|||||||
| 36-5015 | 36-5015 | 25.9mm-33.9mM | 50mm²-150mm² | ||||
| 36-1830 | 36-1830 | 33.7mm-41.3mm | 185mm²-300mm² | ||||
| 36-4050 | 36-4050 | 41.3mm-47.0mm | 400mm²-500mm² | ||||
| 36-630 | 36-630 | 47.0mm-53.5mm | 630mm² | ||||
26/35(40.5)kV |
|||||||
1×1 core |
|||||||
| 40.5-5015-1 | 40.5-5015-1 | 33.7mm-41.6mm | 50mm²-150mm² | ||||
| 40.5-1830-1 | 40.5-1830-1 | 41.3mm-47.0mm | 185mm²-300mm² | ||||
| 40.5-4063-1 | 40.5-4063-1 | 47.0mm-53.5mm | 400mm²-630mm² | ||||
1×3 cores |
|||||||
| 40.5-5015 | 40.5-5015 | 33.7mm-41.6mm | 50mm²-150mm² | ||||
| 40.5-1830 | 40.5-1830 | 41.3mm-47.0mm | 185mm²-300mm² | ||||
| 40.5-4063 | 40.5-4063 | 47.0mm-53.5mm | 400mm²-630mm² | ||||
*NOTE:
1. Cable insulation outer diameter is one of the prerequisites for Cable accessories selection.
2. The above product selection is according to the IEC standard cable.
