Description
Key Features
Room-temperature curing polyurethane resin for convenient field installation
Excellent electrical insulation with dielectric strength greater than 20 kV/mm
High mechanical strength providing protection against vibration and impact
Strong resistance to moisture, chemicals, and atmospheric corrosion
Suitable for indoor, outdoor, underground, and underwater environments
Reliable encapsulation solution for LV and MV cable joints up to 36 kV
Applications
Encapsulation of low-voltage and medium-voltage cable joints
Electrical insulation and mechanical protection of cable connectors
Protection of electrical components in underground cable systems
Sealing of electrical accessories in outdoor and harsh environments
Water-resistant encapsulation for submersible and underground installations
Component A – Technical Parameters
| Property | Typical Value | Test Method |
|---|---|---|
| Appearance | Black liquid | Visual |
| Viscosity | 1000 – 2000 cps | EN ISO 2555 (23°C / 50% RH) |
| Density | 1.04 g/ml | ISO 3675 (23°C / 50% RH) |
Component B – Technical Parameters
| Property | Typical Value | Test Method |
|---|---|---|
| Appearance | Dark brown liquid | Visual |
| Viscosity | 150 – 250 cps | EN ISO 2555 (23°C / 50% RH) |
| Density | 1.5 g/ml | ISO 3675 (23°C / 50% RH) |
Cured Resin Technical Properties
| Item | Typical Value | Standard |
|---|---|---|
| Mixing Ratio | A : B = 100 : 55 | – |
| Operating Time | 10 – 30 min | 23°C / 50% RH |
| Hardness | 70 ±5 Shore D | EN ISO 868 |
| Tensile Strength | 15 MPa | EN ISO 527 |
| Elongation at Break | 40 % | EN ISO 527 |
| Dielectric Constant | < 10 | IEC 60250 |
| Volume Resistivity | 10¹⁴ Ω·cm | IEC 60250 |
| Dielectric Strength | > 20 kV/mm | EN 60243-1 |
Installation Method
Mix component A and component B according to the specified weight ratio.
Pour both components into a clean and dry mixing container.
Stir thoroughly until the mixture becomes uniform.
Pour the mixed resin into the required cable joint or encapsulation device.
Allow the resin to cure completely at room temperature.
Storage and Handling
Store in sealed containers in a dry environment.
Once opened, the material should be used completely to avoid contamination.
Mixing containers and tools must remain dry and free from moisture.
Uncured resin residues can be cleaned using suitable solvents.
Solvents must not be mixed with unused or sealed resin components.

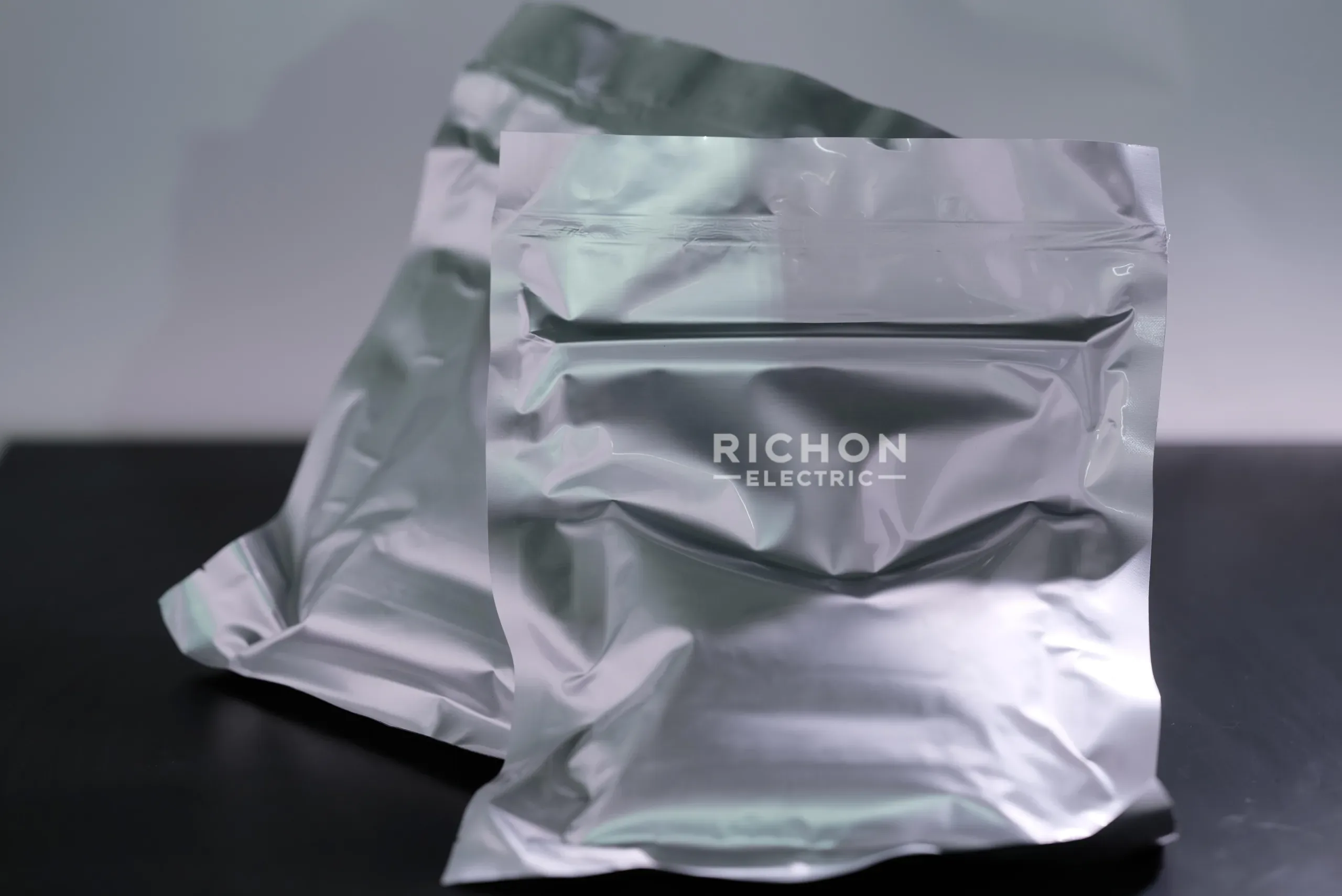

Packaging
Standard packaging: customized per project requirements.
Additional packaging sizes and weights are available upon request.
Technical Disclaimer
Users should read the product instructions carefully before application. For detailed technical guidance, please consult Richon technical engineers. Improper handling or incorrect installation may lead to product failure. Richon shall not be responsible for losses resulting from improper use.
