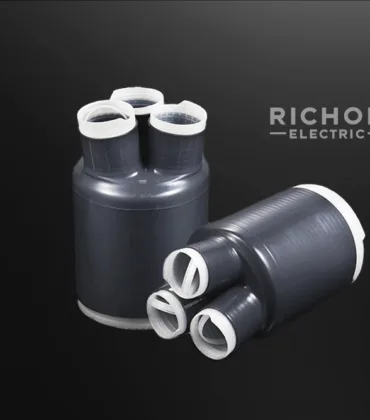

Description
Key Features
- Quick and Easy Installation – Tool-free installation reduces labor time and costs.
- Immediate Reenergizing – Ready for use immediately after installation.
- High Mechanical Strength – Withstands physical stress and mechanical impacts.
- Waterproof and Weather-Resistant – Ensures long-lasting protection against moisture and environmental factors.
- Versatile Sizing – Accommodates a wide range of cable sizes for flexible applications.
- Durable Material – Retains resiliency and sealing pressure over time.
Technical Specifications
Test Items |
Test Method |
Requirements |
|---|---|---|
| Tensile Strength | ASTM D 638 | 7 MPa (min) |
| Ultimate Elongation | ASTM D 638 | 600% (min) |
| Tear Strength | ASTM D 638 | 20 kN/m (min) |
| Density | ASTM D 792 | 1.2 g/cm³ |
Size |
D(mm) |
I(mm) |
Recovered wall |
Recovered length |
|||
(±20%) |
(±10%) |
||||||
(mm) |
a* (Min.) |
b* (Max.) |
a* (Min.) |
b* (Max.) |
Iw |
L |
F |
RC-CSB-75/38 |
75 | 38 | 31 | 14 | 2.5 | 170 | 45 |
RC-CSB-92/43 |
92 | 43 | 36 | 16 | 2.5 | 180 | 45 |
RC-CSB-105/53 |
105 | 53 | 41 | 19 | 2.5 | 190 | 45 |
RC-CSB-120/62 |
120 | 62 | 48 | 23 | 3.5 | 201 | 45 |
RC-CSB-160/68 |
160 | 68 | 67 | 27 | 3.5 | 230 | 60 |
RC-CSB-200/85 |
200 | 85 | 80 | 32 | 3.5 | 230 | 60 |
a* = Inner diameter as supplied
b* = Inner diameter after fully recovered
